AZ-104 Practice Questions — Page 26

You have an Azure subscription that contains two virtual machines named VM1 and VM2.

You create an Azure load balancer.

You plan to create a load balancing rule that will load balance HTTPS traffic between VM1 and VM2.

Which two additional load balancer resources should you create before you can create the load balancing rule? Each correct answer presents part of the solution.

NOTE: Each correct selection is worth one point.

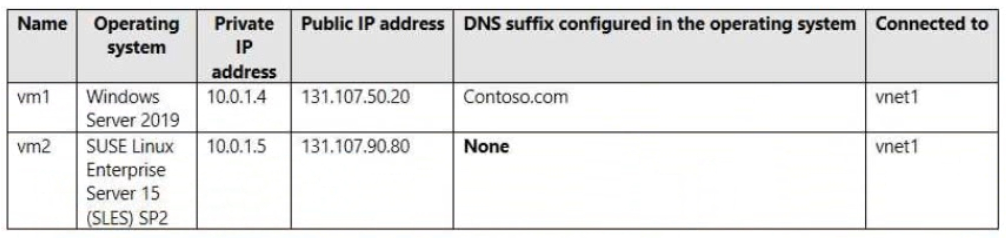

You have two Azure virtual machines as shown in the following table.

You create the Azure DNS zones shown in the following table.

You perform the following actions:

✑ ׀¢׀¾ fabrikam.com, you add a virtual network link to vnet1 and enable auto registration.

✑ For contoso.com, you assign vm1 and vm2 the Owner role.

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

Hot Area:

You have an on-premises datacenter and an Azure subscription.

You plan to connect the datacenter to Azure by using ExpressRoute.

You need to deploy an ExpressRoute gateway. The solution must meet the following requirements:

✑ Support up to 10 Gbps of traffic.

✑ Support availability zones.

✑ Support FastPath.

✑ Minimize costs.

Which SKU should you deploy?

You have a virtual network named VNET1 that contains the subnets shown in the following table:

You have Azure virtual machines that have the network configurations shown in the following table:

For NSG1, you create the inbound security rule shown in the following table:

For NSG2, you create the inbound security rule shown in the following table:

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

Hot Area:

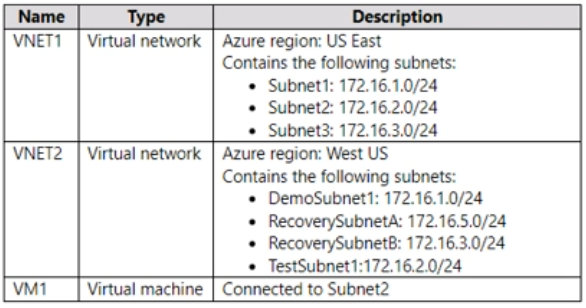

You have an Azure subscription that contains the resources shown in the following table.

You configure Azure Site Recovery to replicate VM1 between the US East and West US regions.

You perform a test failover of VM1 and specify VNET2 as the target virtual network.

When the test version of VM1 is created, to which subnet will the virtual machine be connected?

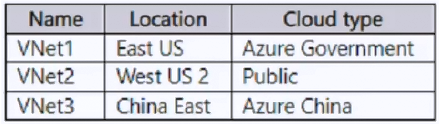

You have an Azure subscription that contains the virtual networks shown in the following table.

You have the peering options shown in the following exhibit.

You need to design a communication strategy for the resources on the virtual networks.

For each of the following statements, select Yes if the statement is true. Otherwise, select No.

NOTE: Each correct selection is worth one point.

Your network contains an on-premises Active Directory Domain Services (AD DS) domain named contoso.com. The domain contains the servers shown in the following table.

You plan to migrate contoso.com to Azure.

You create an Azure virtual network named VNET1 that has the following settings:

• Address space: 10.0.0.0/16

• Subnet:

o Name: Subnet1

o IPv4: 10.0.1.0/24

You need to move DC1 to VNET1. The solution must ensure that the member servers in contoso.com can resolve AD DS DNS names.

How should you configure DC1? To answer, select the appropriate options in the answer area.

NOTE: Each correct selection is worth one point.

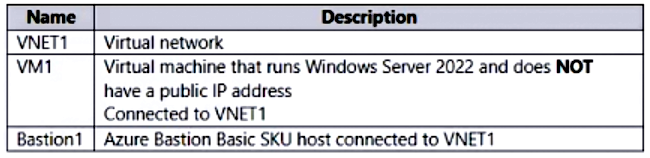

You have a Windows 11 device named Device and an Azure subscription that contains the resources shown in the following table.

Device1 has Azure PowerShell and Azure Command-Line Interface (CLI) installed.

From Device1, you need to establish a Remote Desktop connection to VM1.

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
