AZ-104 Certification Practice Question #207

Question

You have an Azure subscription named Sub1.

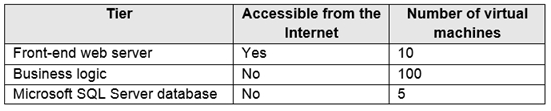

You plan to deploy a multi-tiered application that will contain the tiers shown in the following table.

You need to recommend a networking solution to meet the following requirements:
✑ Ensure that communication between the web servers and the business logic tier spreads equally across the virtual machines.
✑ Protect the web servers from SQL injection attacks.
Which Azure resource should you recommend for each requirement? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

Accepted Answer

To distribute traffic internally between the web servers and the business logic tier, an internal load balancer is required because it operates within the virtual network scope without exposing public endpoints. To protect the web servers from SQL injection and other OWASP Top 10 web vulnerabilities, a Web Application Firewall (WAF) is necessary, which is provided by an Application Gateway using the WAF pricing tier.
